grid injection power limit (external datamanager)

1. intro

in same rare cases we must limit the injection of a maximum power into the grid.

in this tutorial we will show how to configure trough the build-in datamanager of an SMA tripower X.

as a prereq we will assume that we installed and configured an energymeter such as an elgris or a sma homemanager

for this scenario we have a SMA tripower 50K and want to limit the injection to a max power of 34K (66% active power).

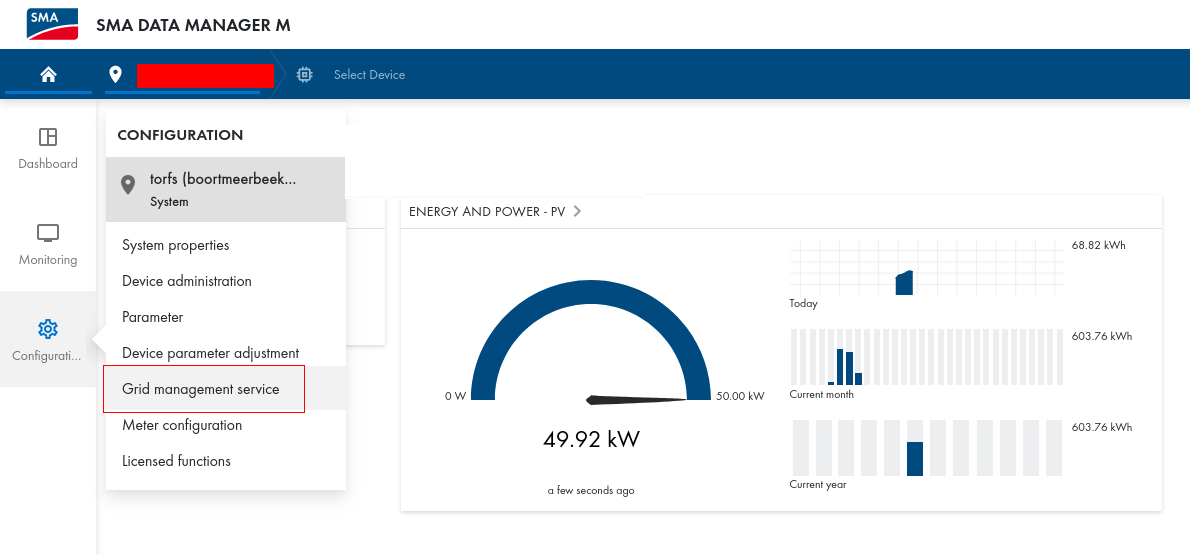

./pic/pic01.png

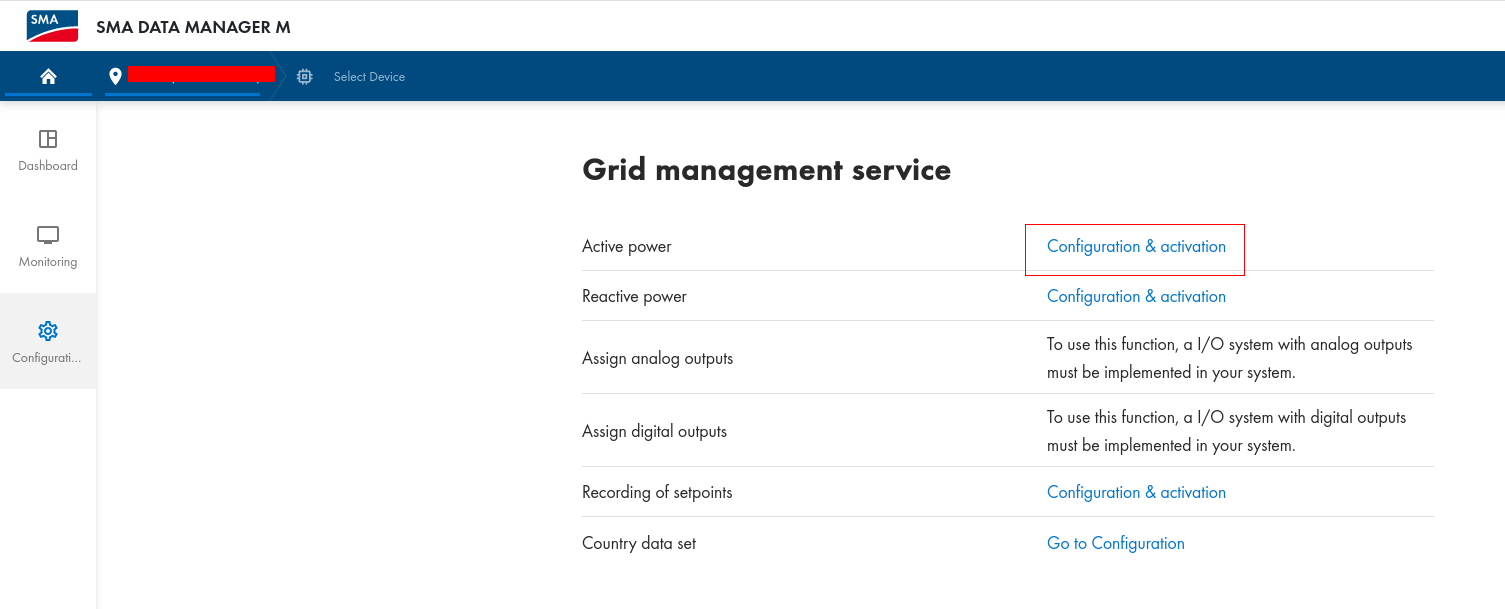

./pic/pic02.png

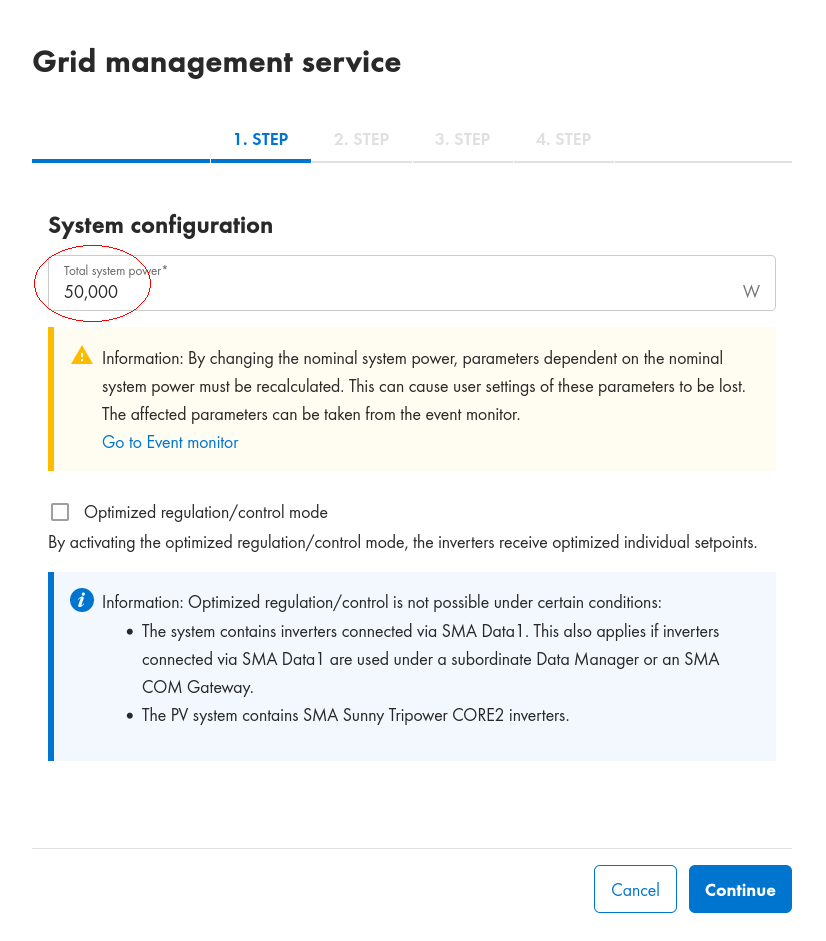

./pic/pic03.png

./pic/pic04.png

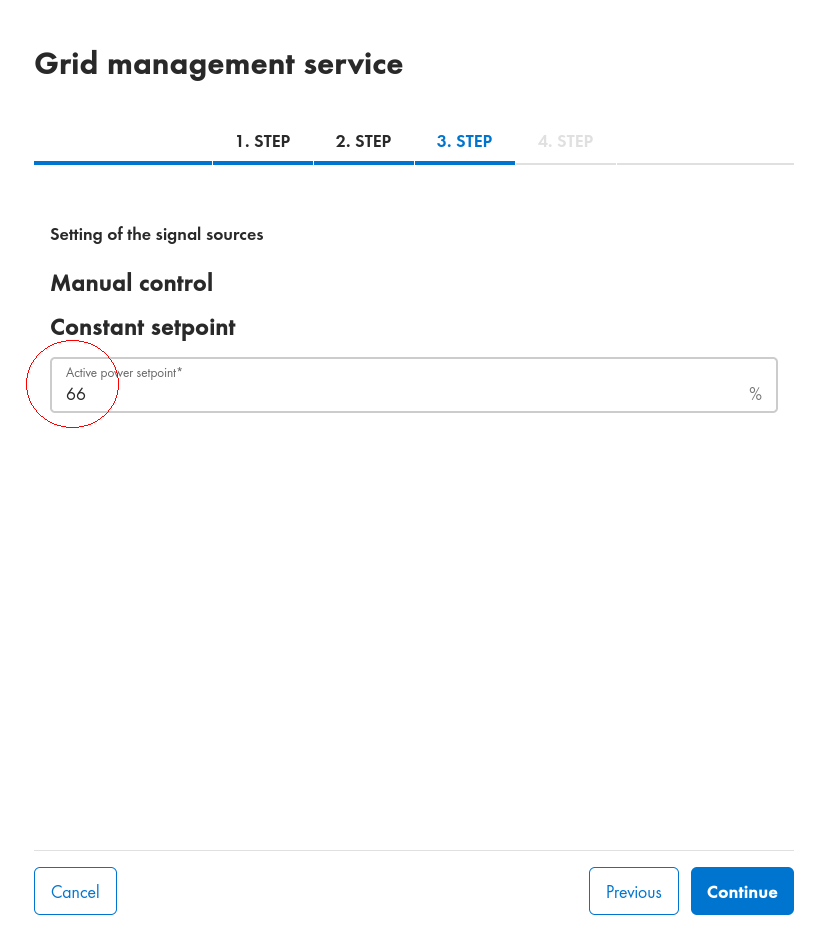

./pic/pic05.png

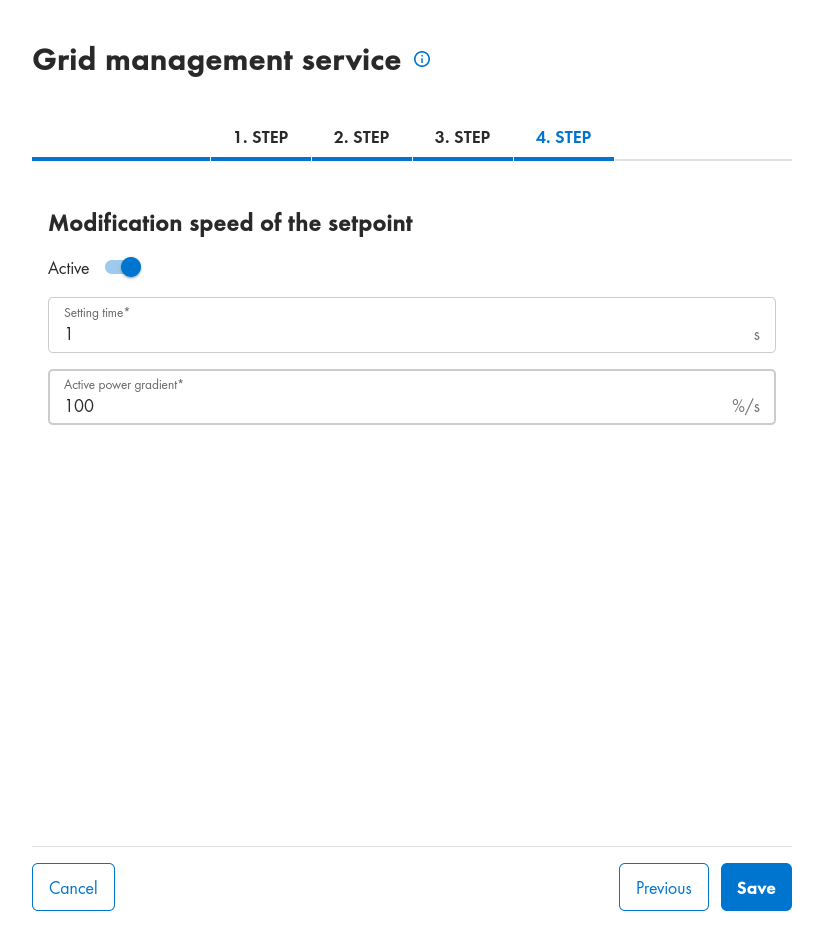

./pic/pic06.png

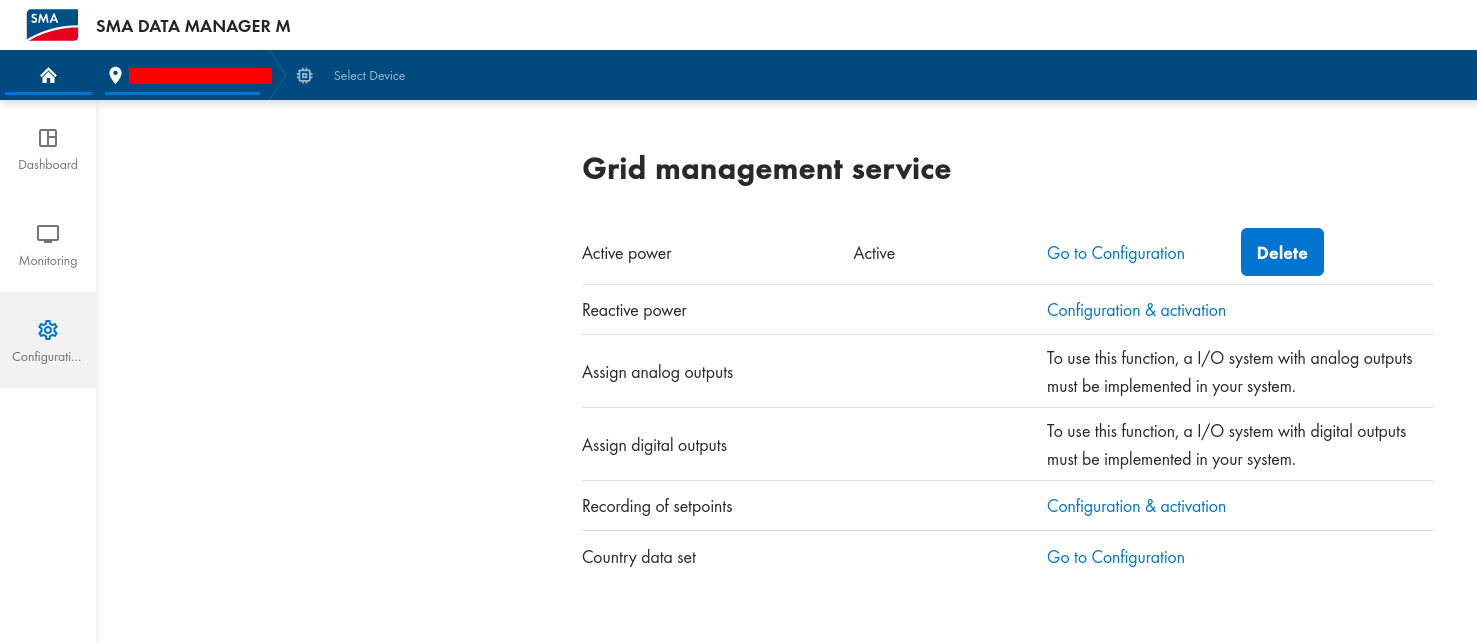

./pic/pic07.png
